Bottle Washing Machine

Bottle Washing Machine

Bottle Washing Machine Description:

The JY-bw32 type Bottle Washing Machine produced by our factory is a newly-designed Bottle Washing Machine with external shower and internal flushing according to the actual requirements of users, combining the principles of the structure of domestic and foreign bottle flushers. This Bottle Washing Machine is a necessary equipment before liquid filling. The water distribution valve is made of non-polluting materials to meet the requirements of food equipment.

Features of Bottle Washing Machine:

1.喷瓶的外墙,ner wall is rinsed, and the bottle is cleaned.
2. The use of low-pressure pump booster cycle flush bottle, low water consumption.
3. The structure is simple, easy maintenance, stainless steel water tank, beautiful and generous, corrosion resistance.
4. Save labor and effort, high production efficiency, suitable for a wide range of bottles.

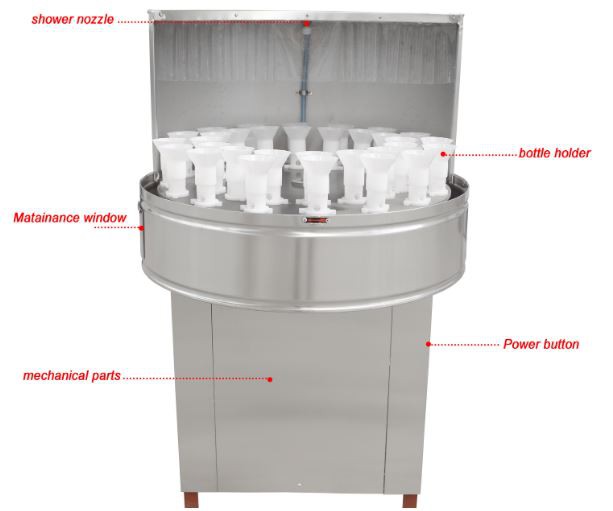

Principle of Bottle Washing Machine:

1.The outer wall of the bottle is sprayed with a spray nozzle, and the spray pressure can be adjusted by a spray switch. (The pressure of the external water source of this machine needs to be higher than 0.1Mpa. If it is lower than this pressure, you need to bring your own booster pump.)
2. When the inner wall is flushed, the lower valve body is statically fixed on the bracket, and the upper valve body is integrated with the upper plate of the flush bottle through the nozzle and rotates at the same time. When the lower valve body water inlet is connected, the water is flushed through the nozzle to flush the inside of the bottle.

Bottle Washing Machine Technical Parameters:
